Cubes

Pearls in the densification task

Cubes, Amsterdam

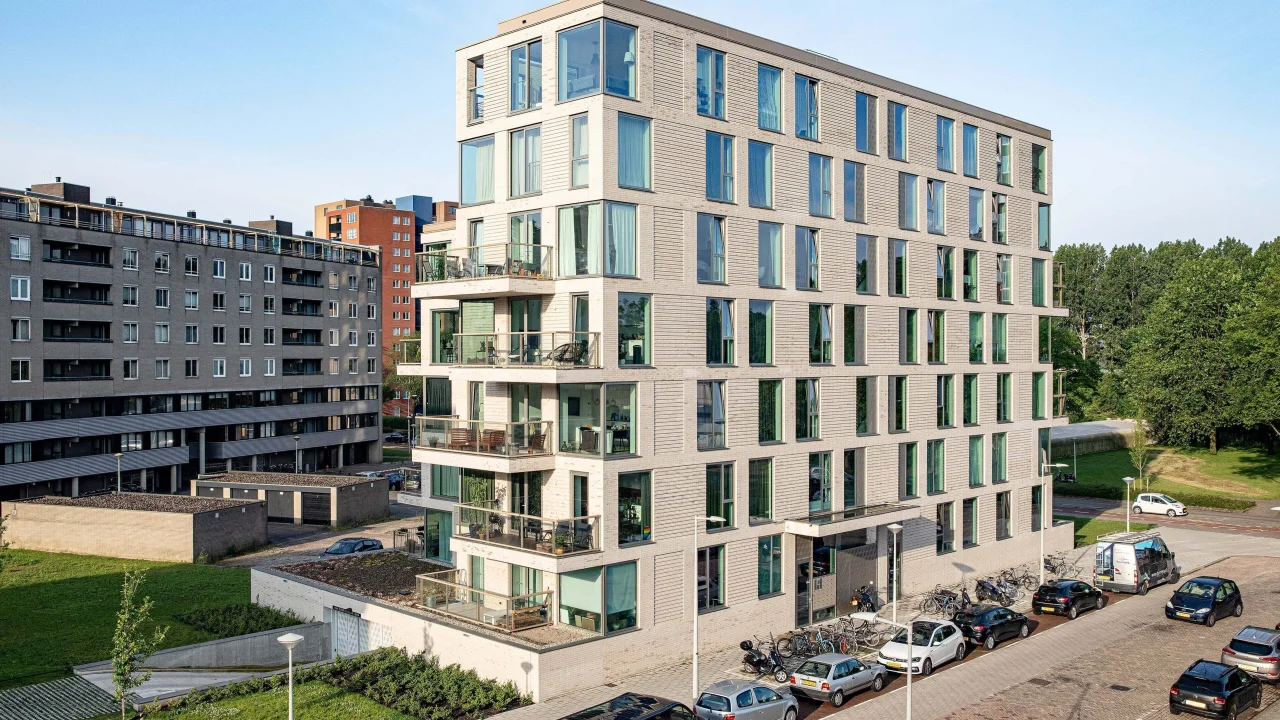

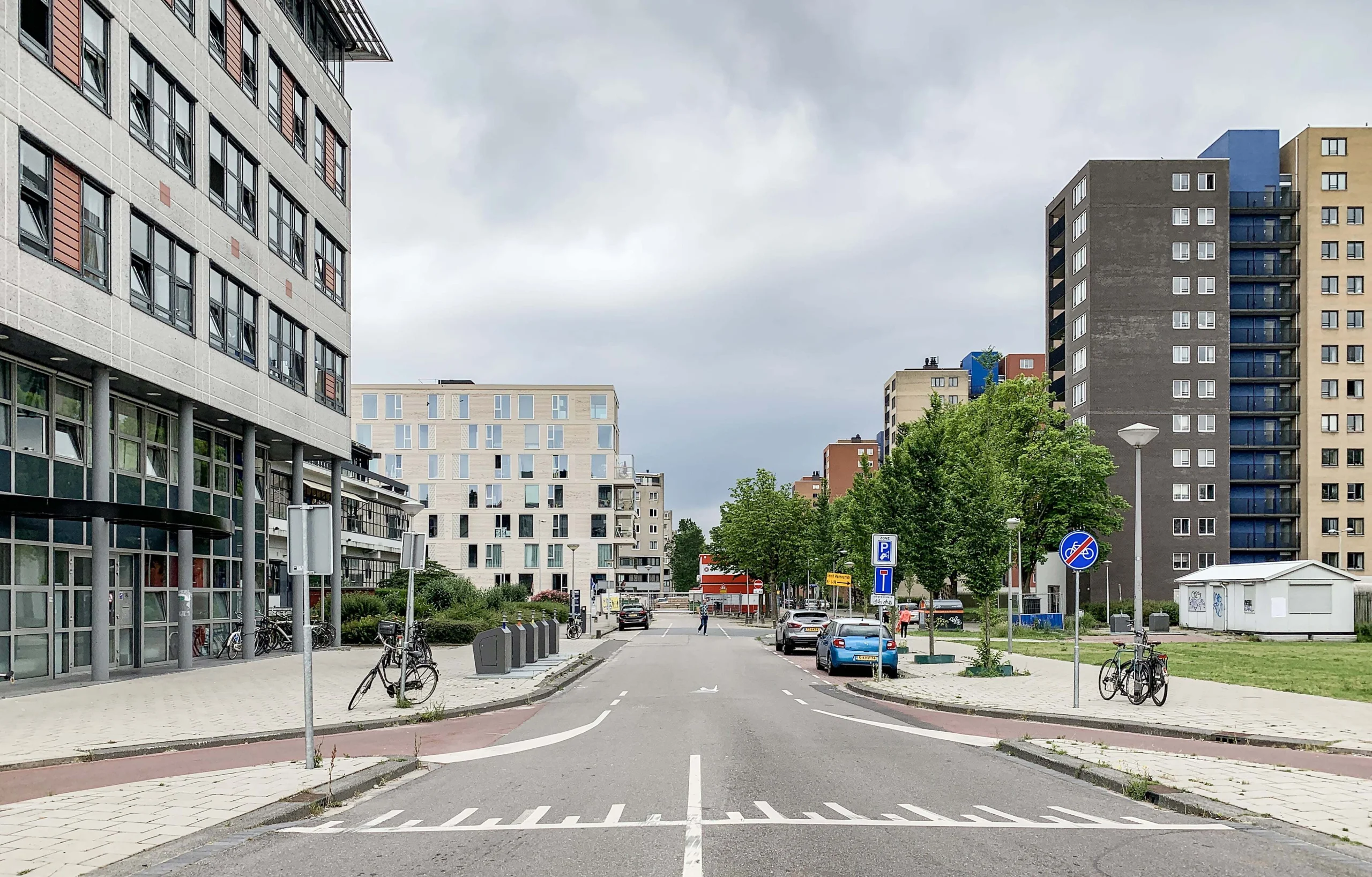

A transparent façade architecture in keeping with the 1930s Amsterdam Expansion Plan makes these two buildings pearls in the densification task of Amsterdam-West. This area in transition is undergoing radical development. After the major densification and urbanisation taking place here, living outside the Amsterdam ring road will become increasingly popular. Beautiful living in the city and all its qualities around the corner, that's the objective.

Western Garden Cities

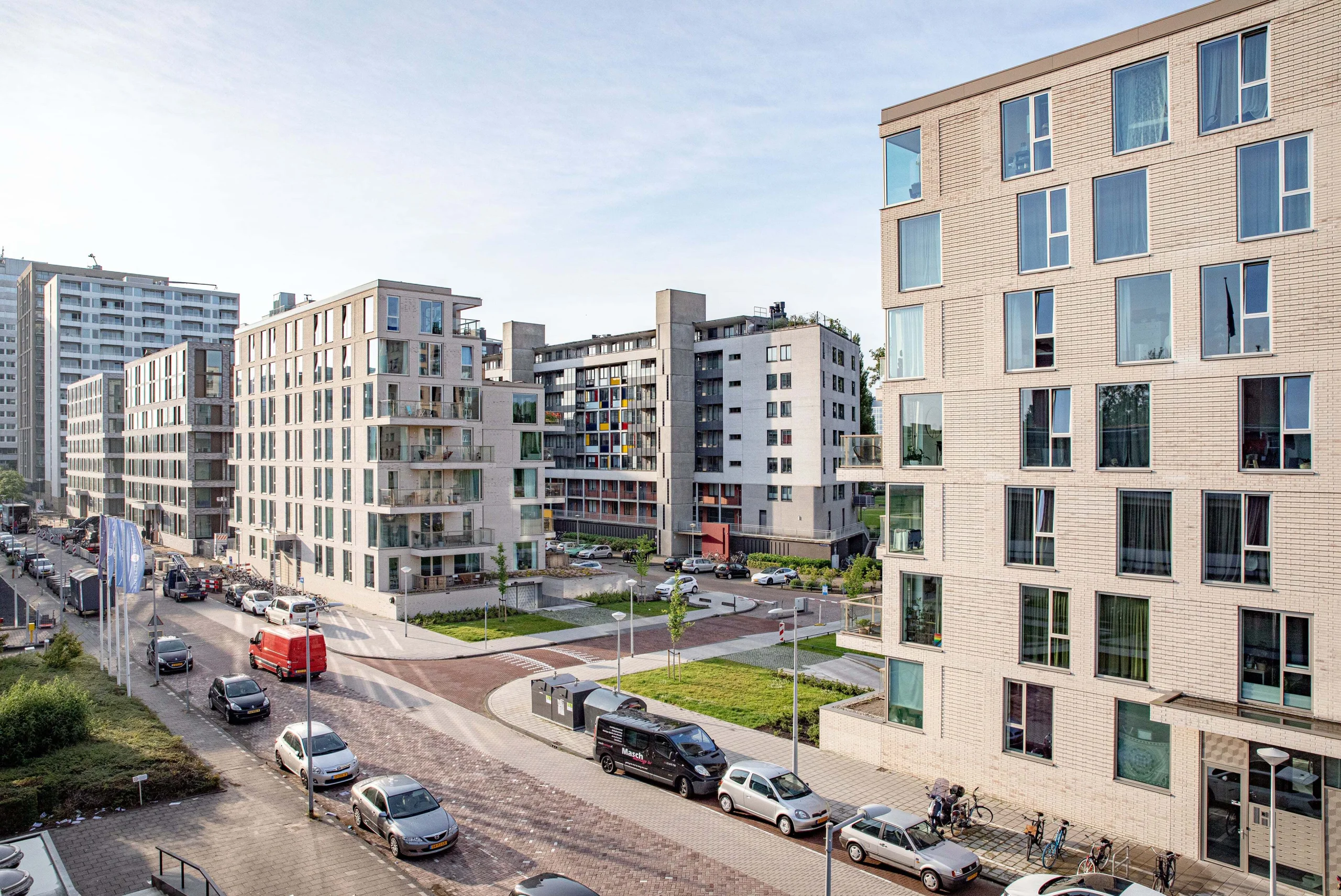

The design for Cubes anticipates this development, but does not forget history. Here, a stone's throw from the Western Garden Cities, different time layers shape the city. The plan blends into the existing mixed-use buildings from the 50s, 70s and 90s around Queen Wilhelmina Square. This is reflected, for instance, in the rational division of the façade and in the urban orientation of the volumes.

Housing variation

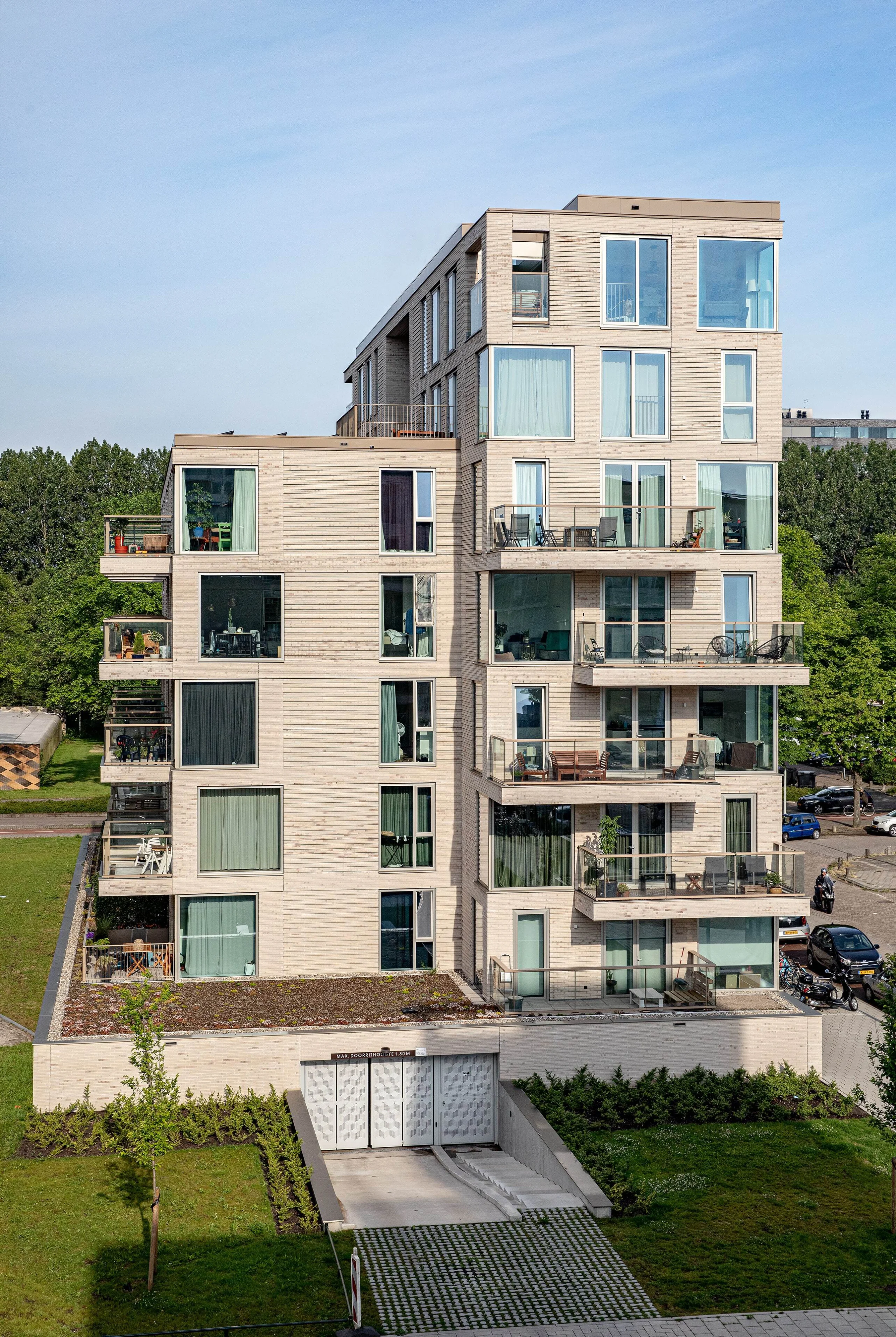

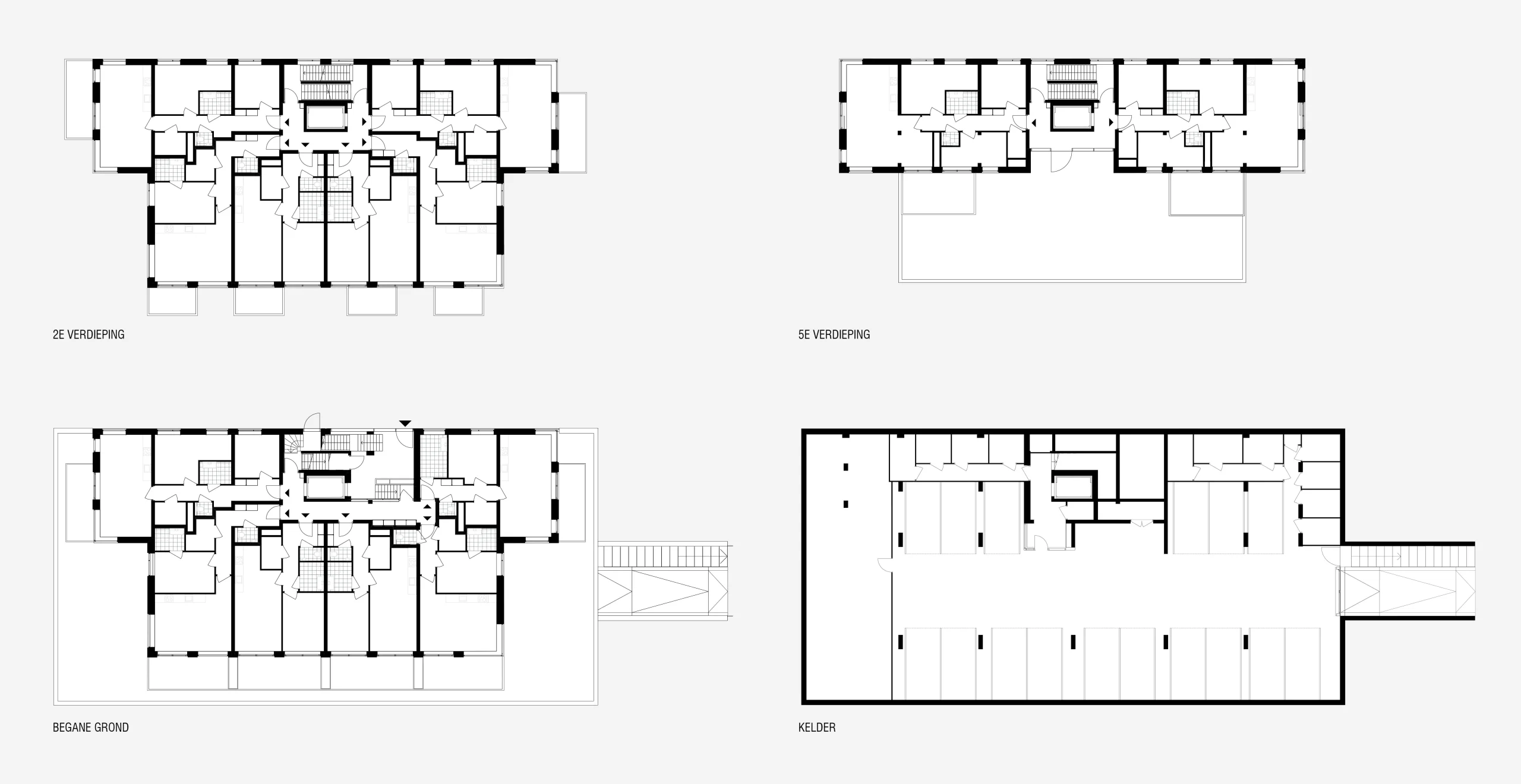

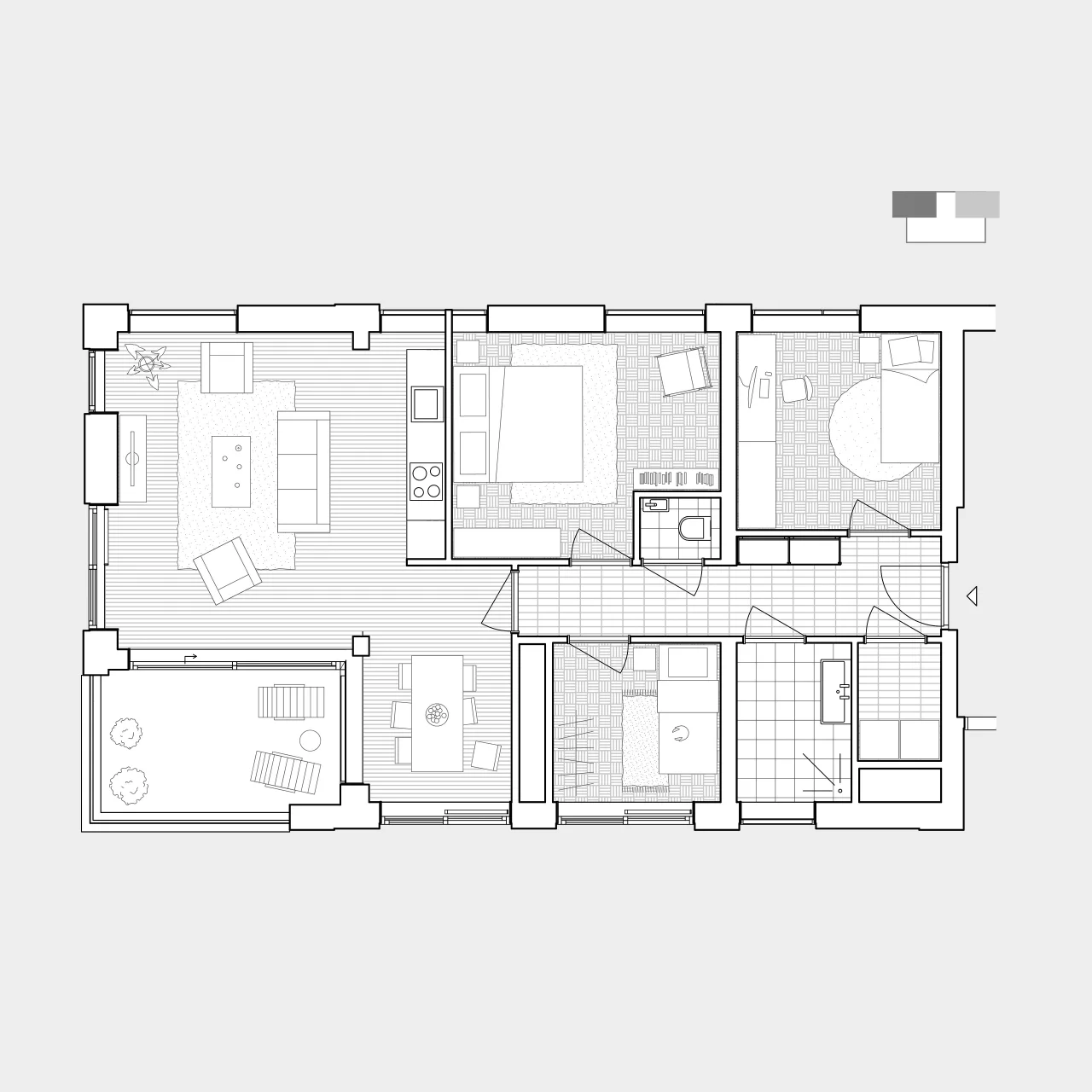

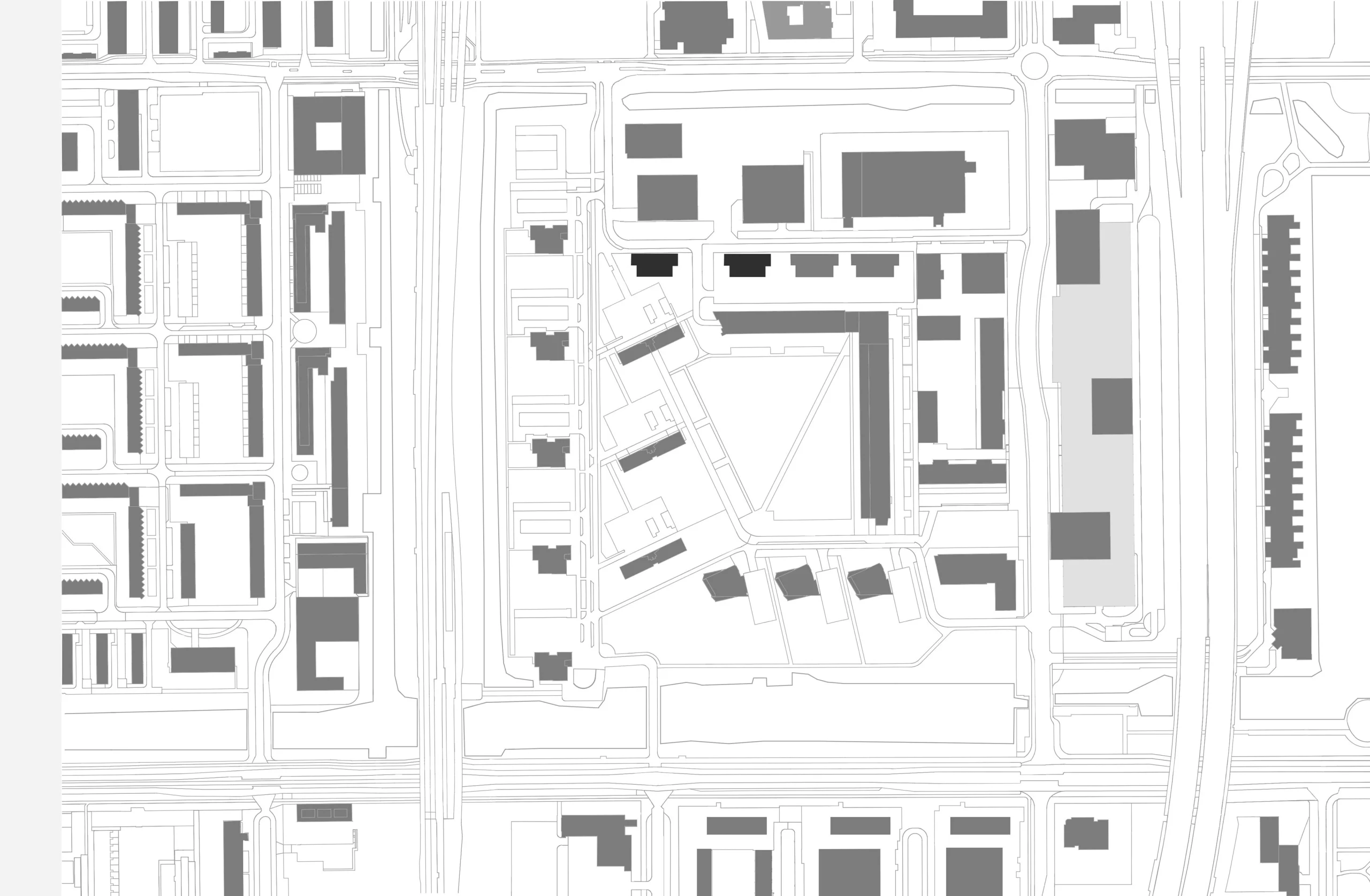

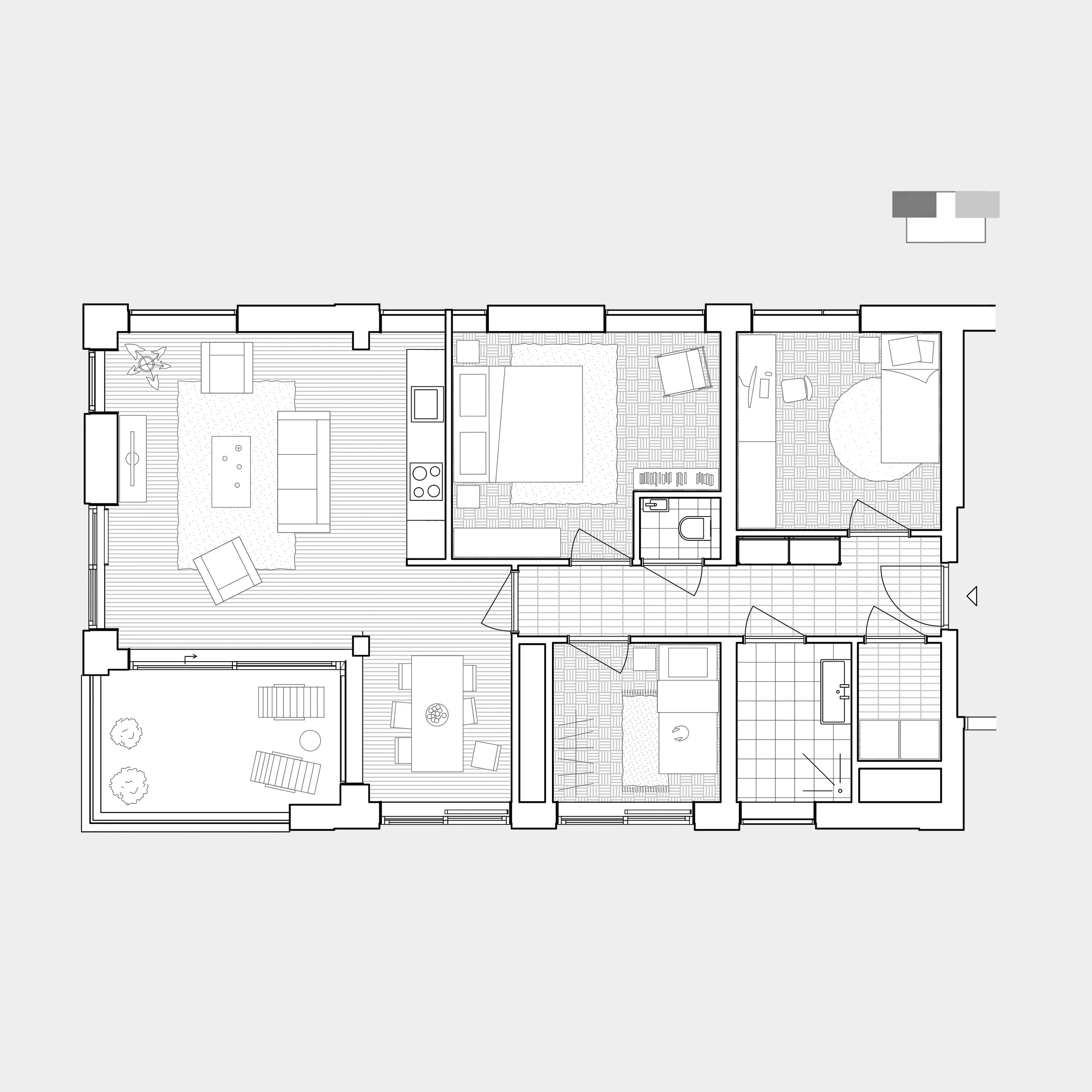

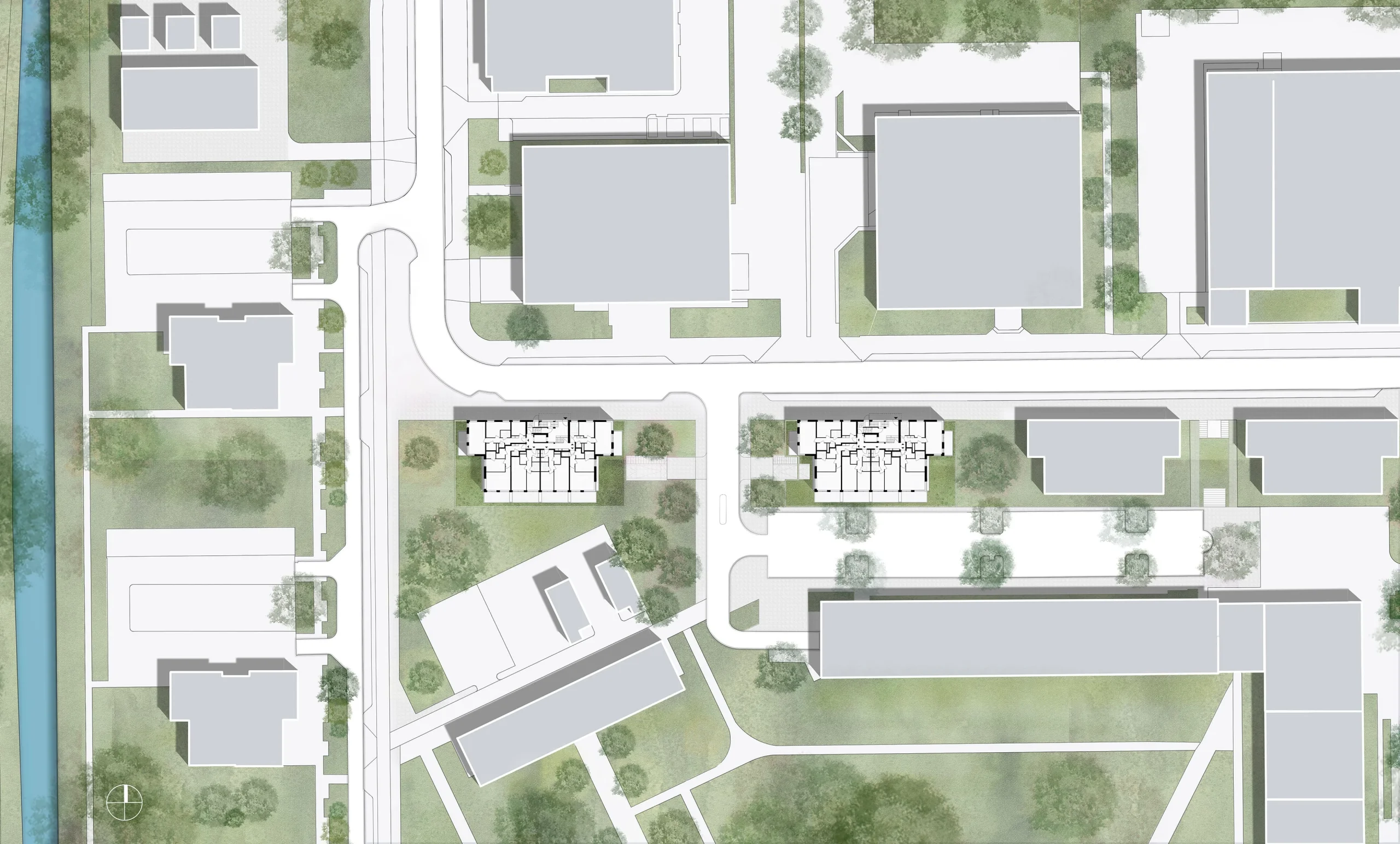

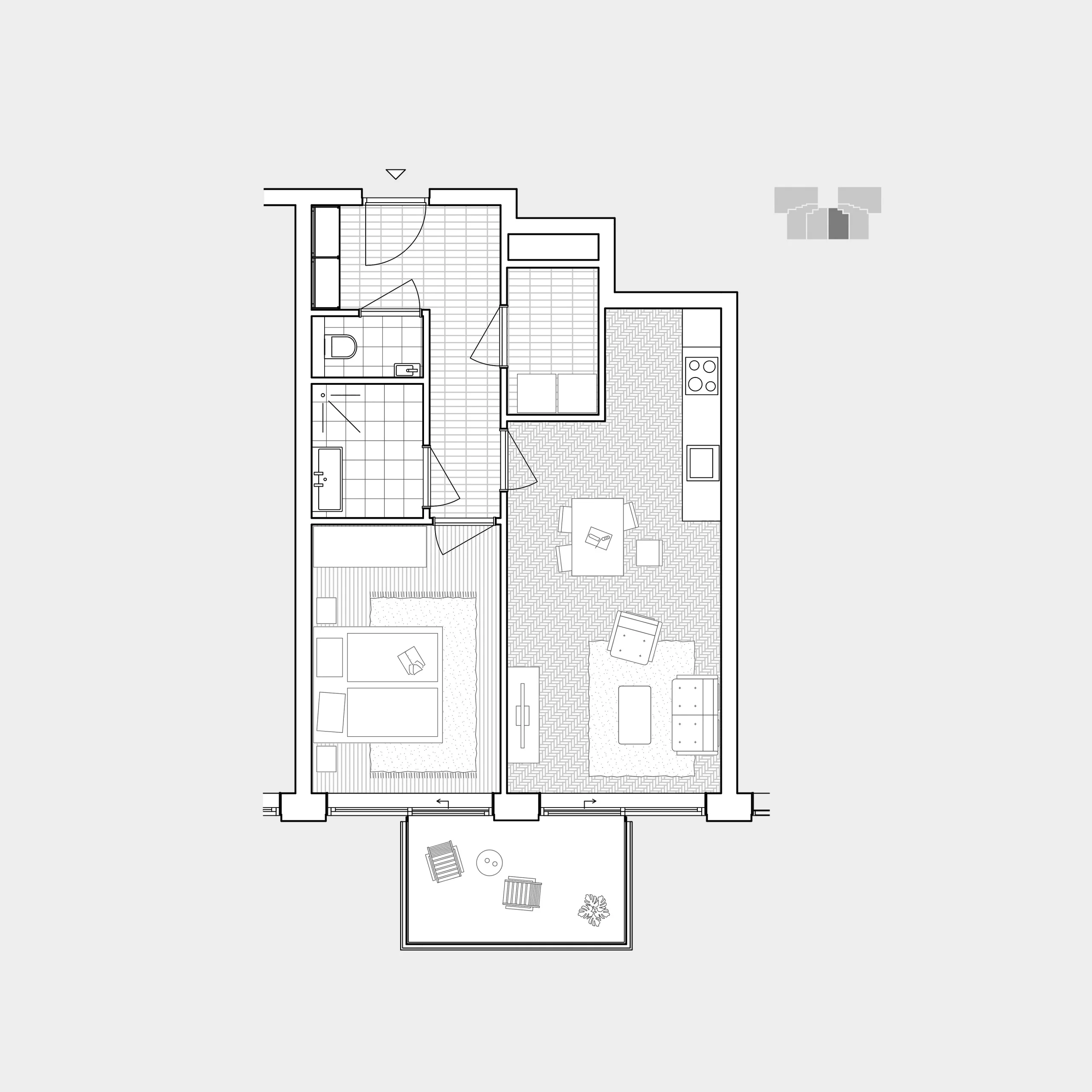

In the urban design, four buildings stand in a row on a green mound. Cubes, those are the two western of these four volumes. Of the total 68 apartments, two-thirds of Cubes are medium-rent and one-third free sector. The flats range between 50 and 90 square metres. Underneath the mounds are semi-underground 32 parking spaces.

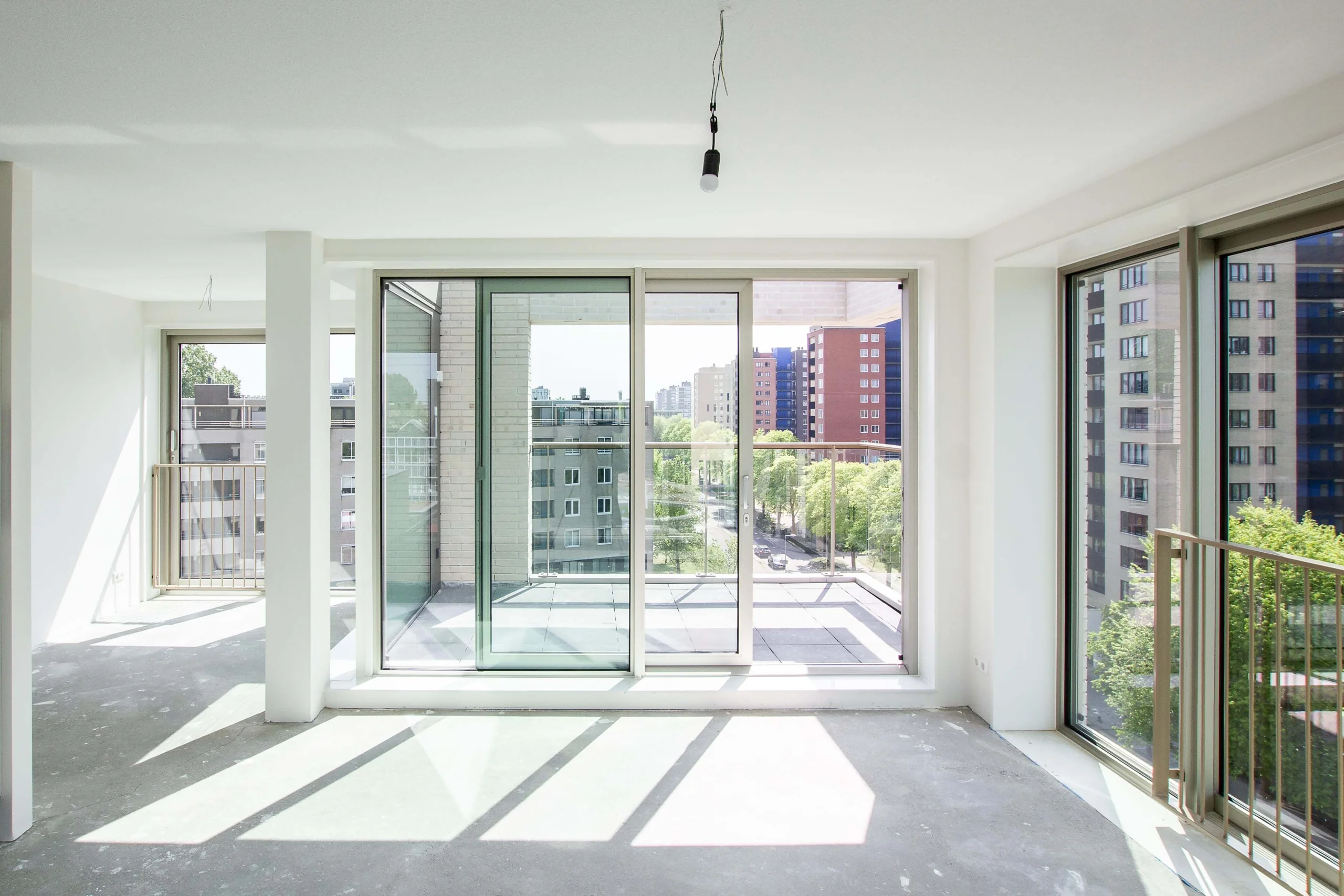

All the residents I spoke to, named the features you told me about. They are super happy with the spaciousness, the large windows and the fact that you have light on several sides. So mission accomplished.

Lizet Deutekom, copywriter book Cubes

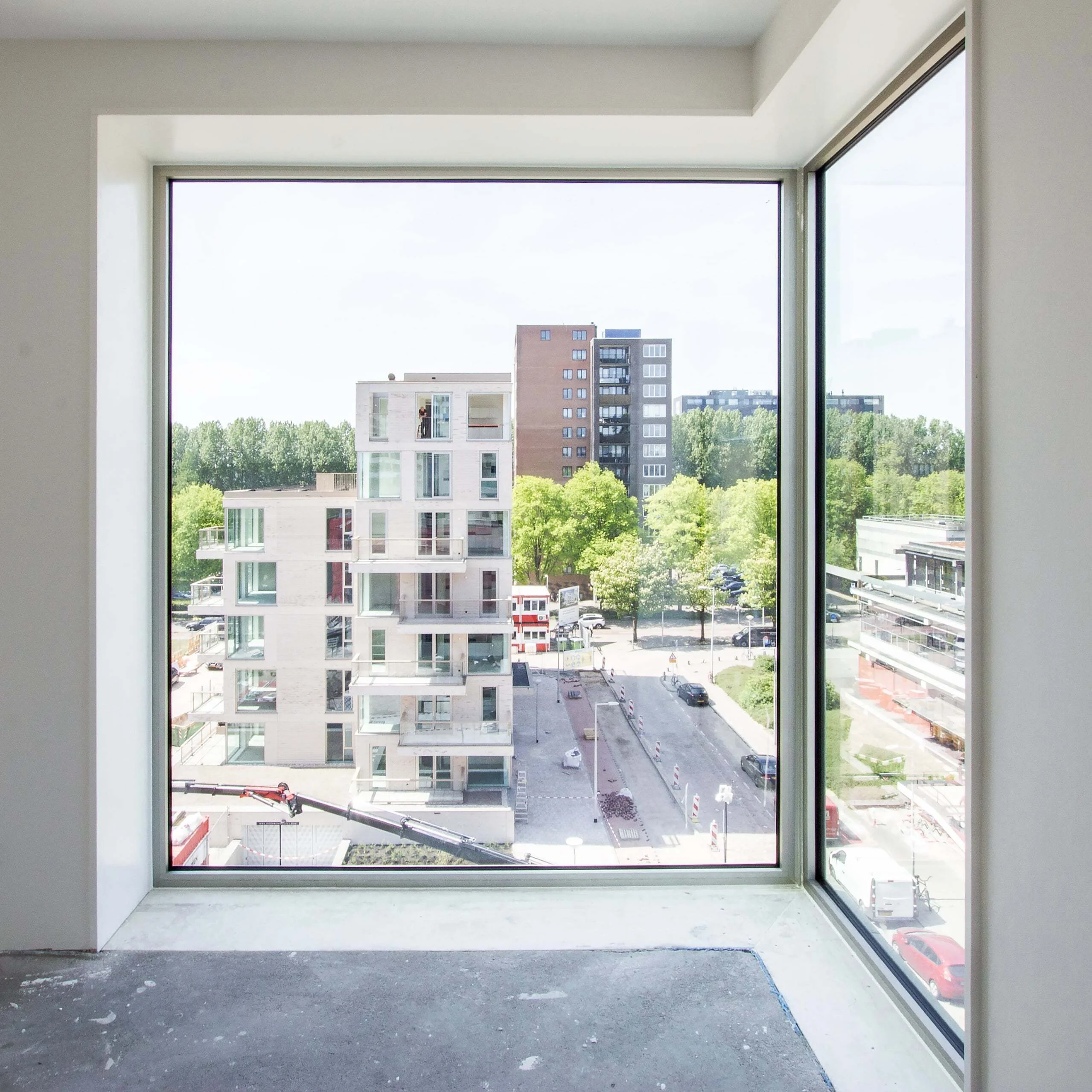

Maximum views

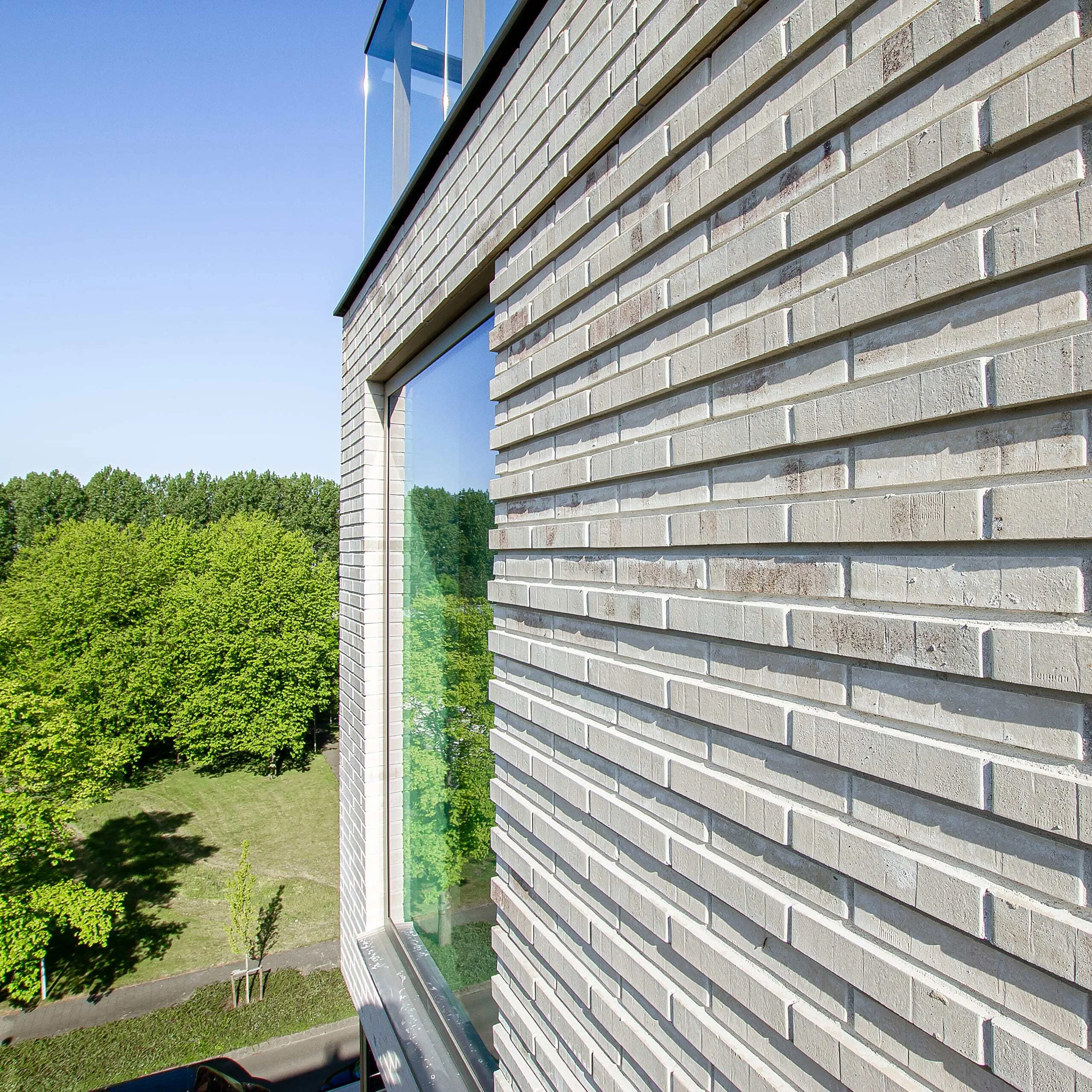

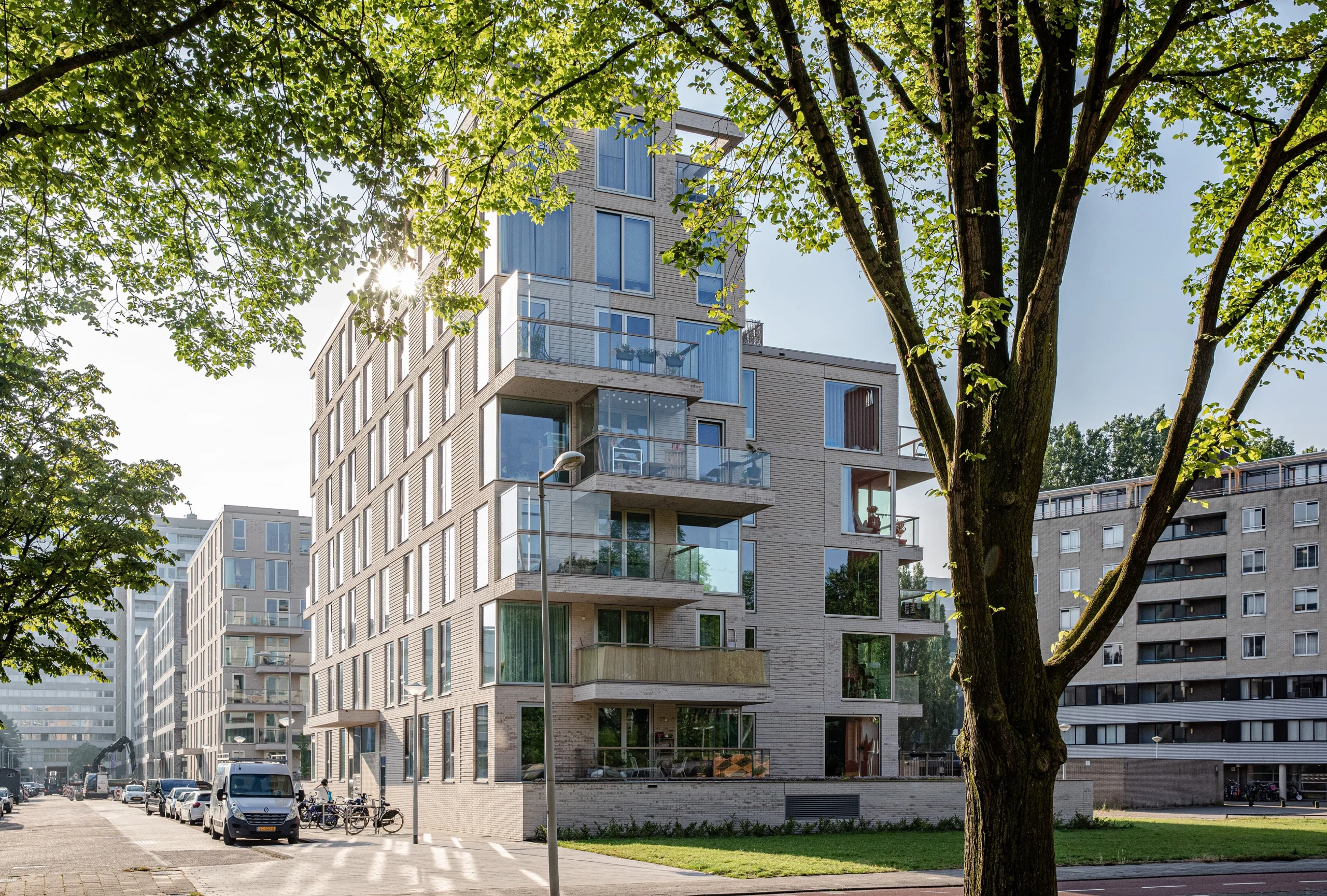

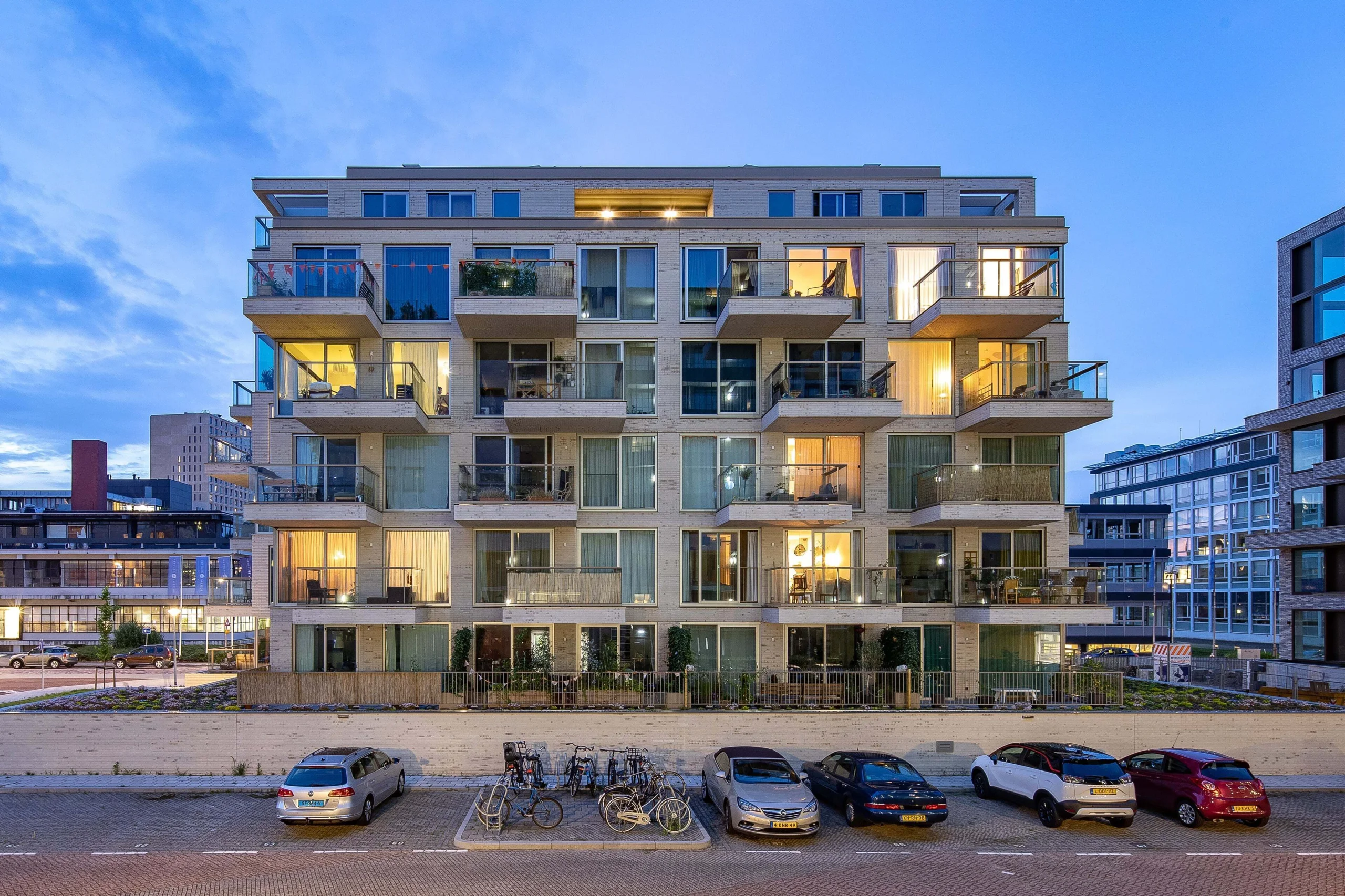

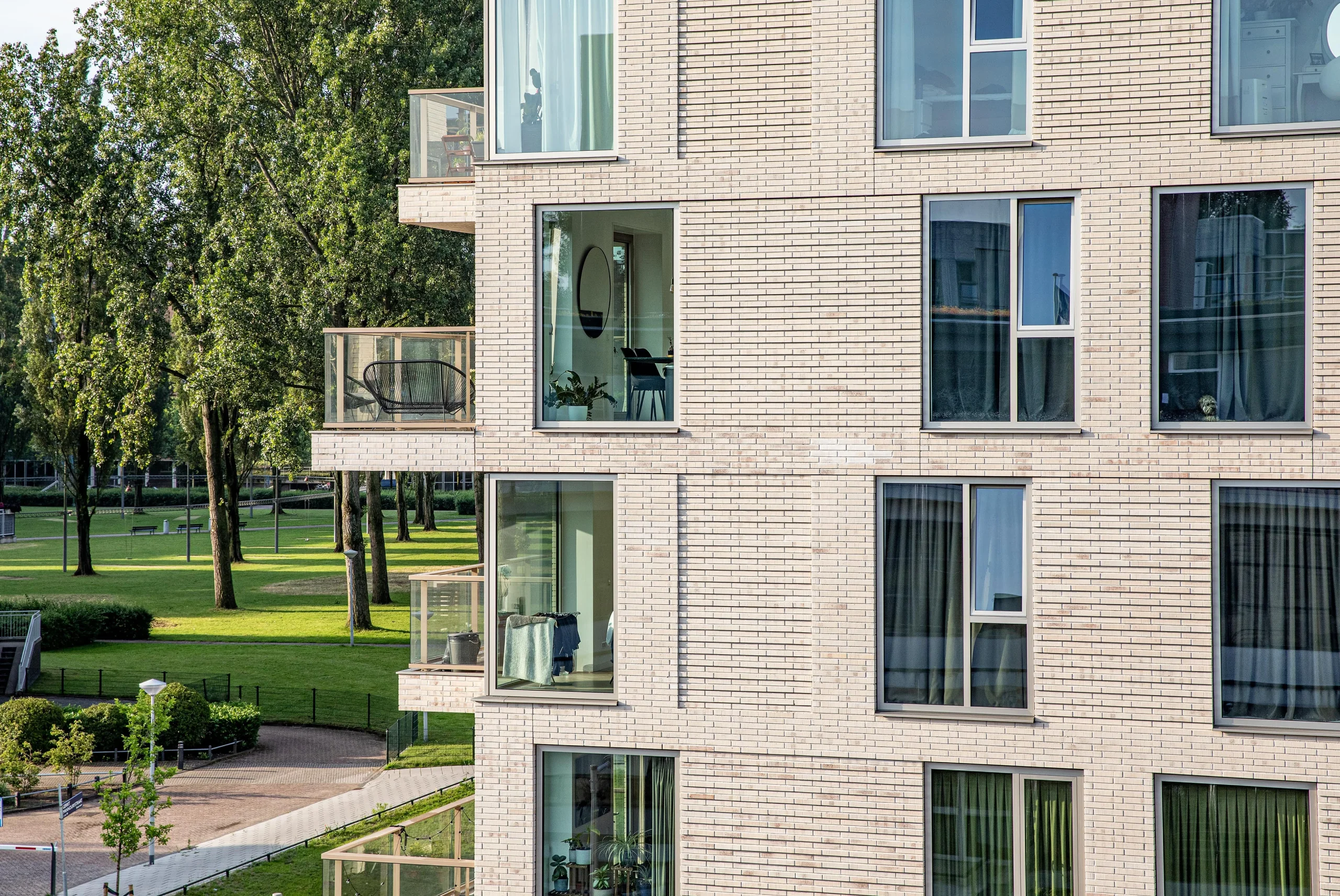

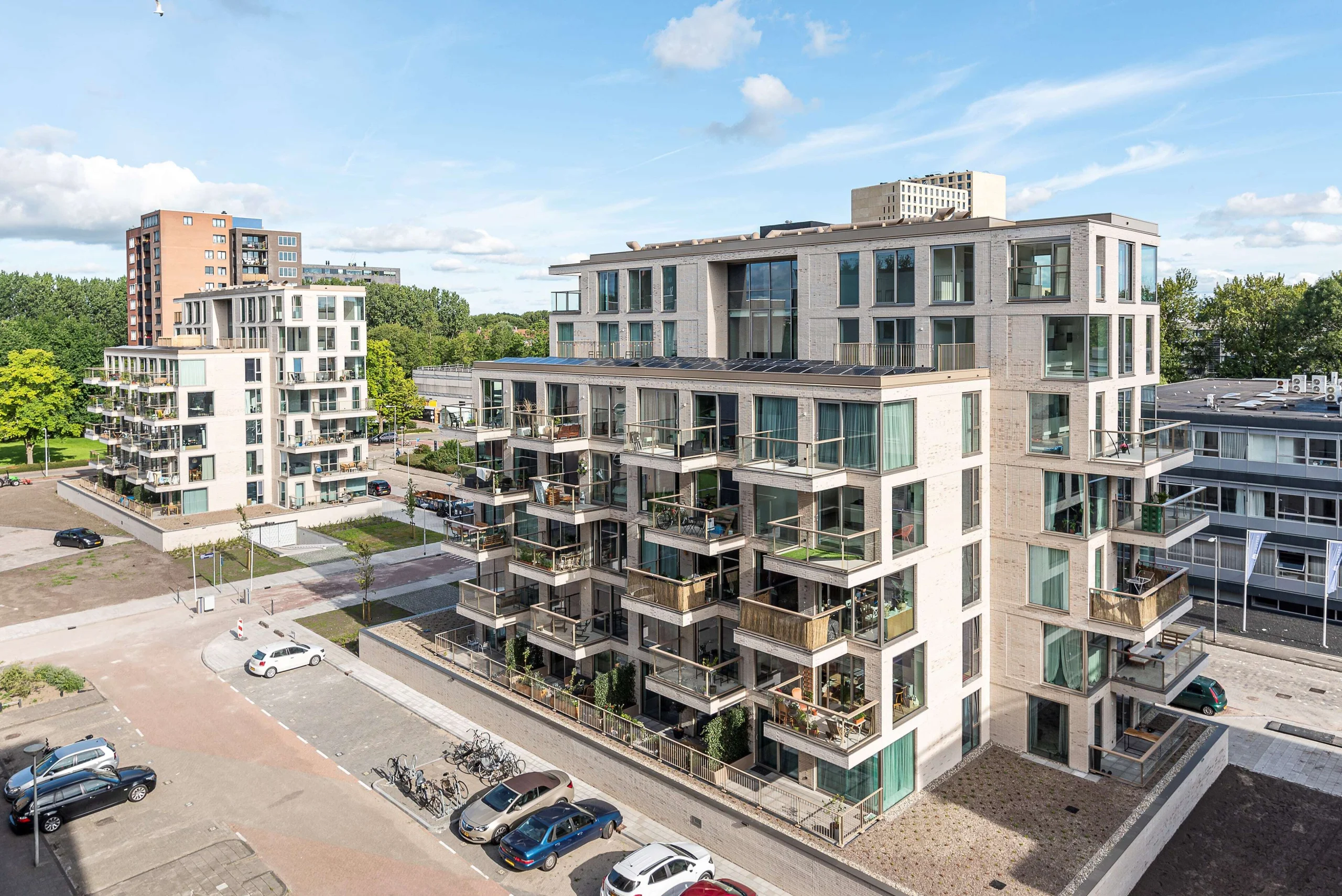

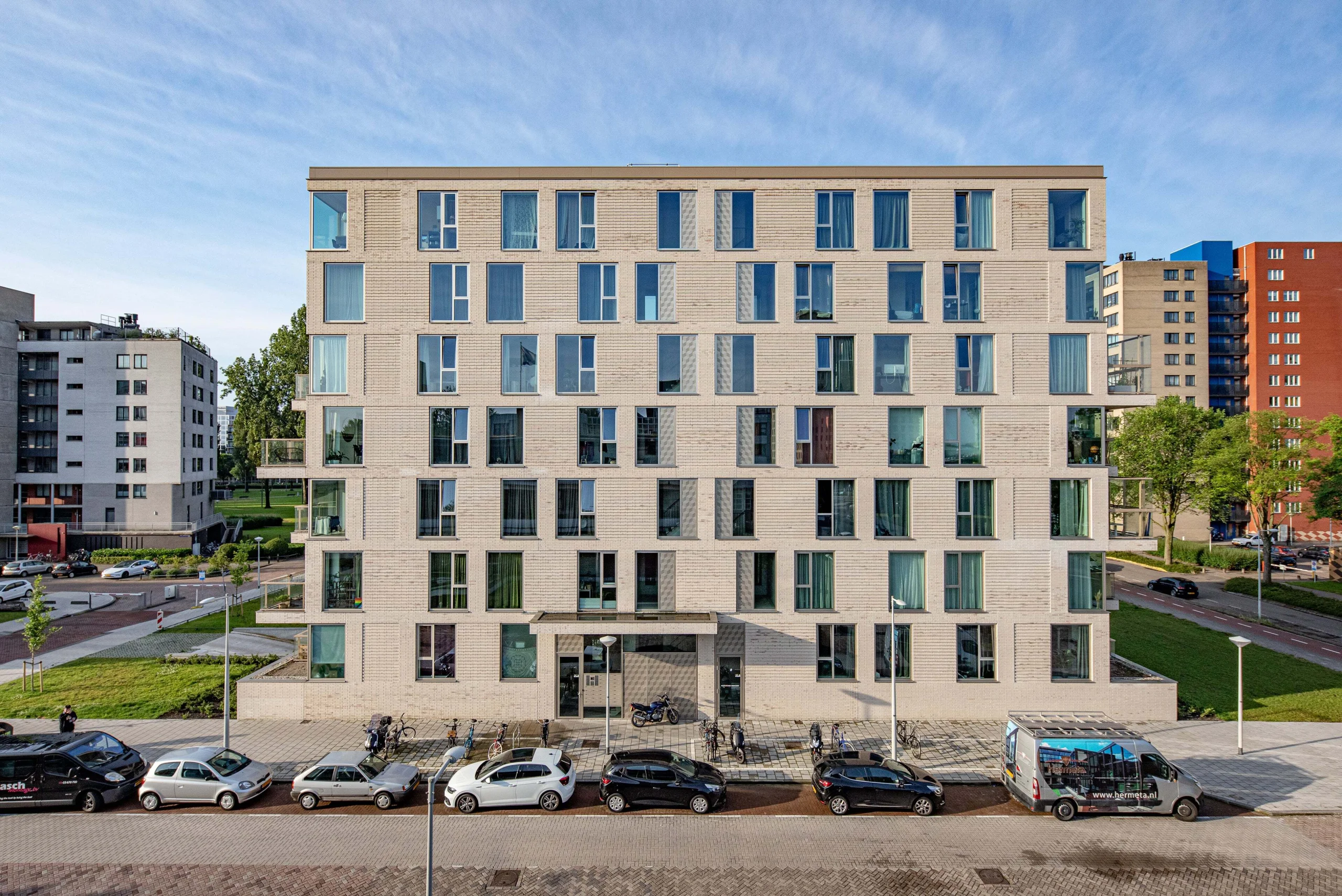

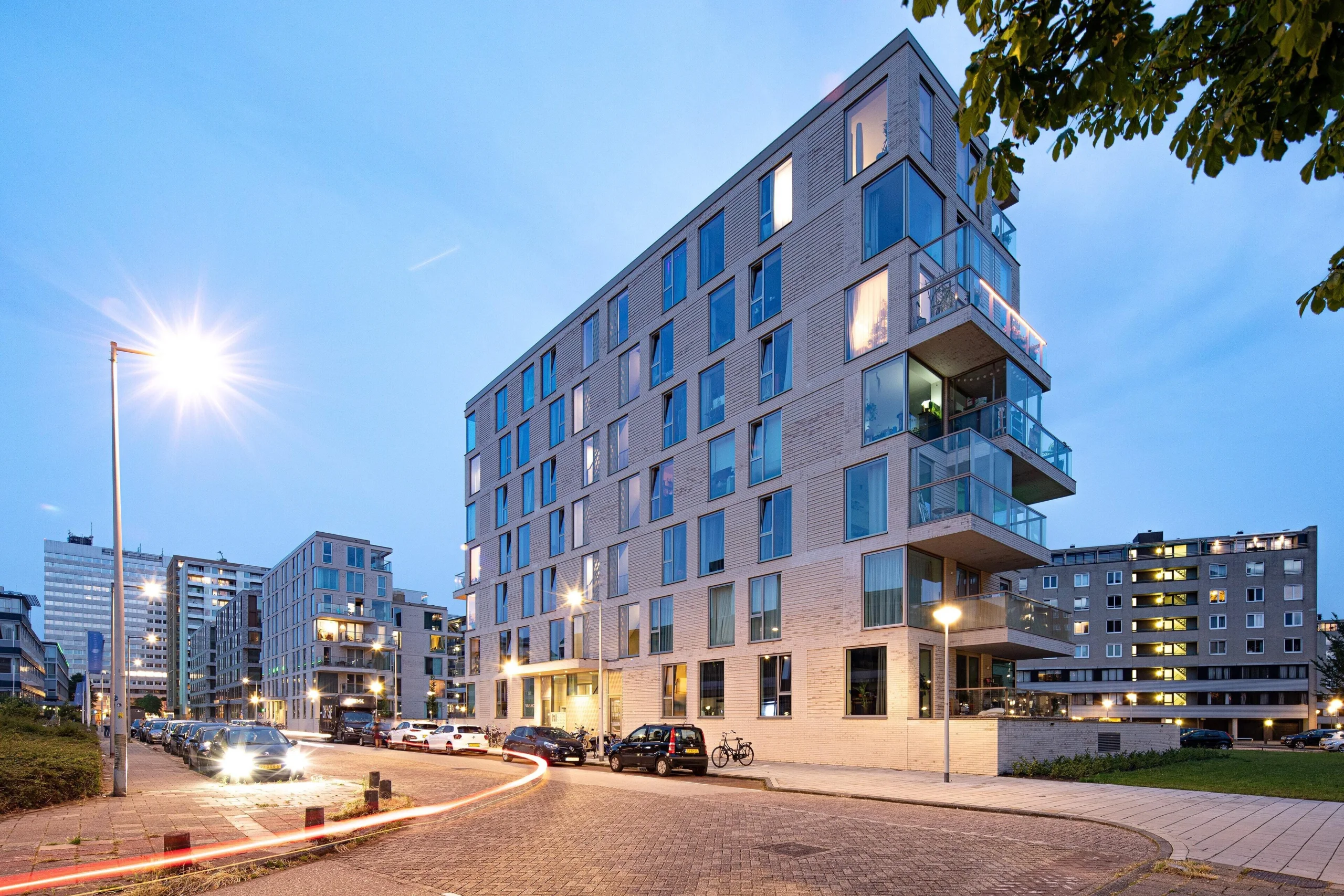

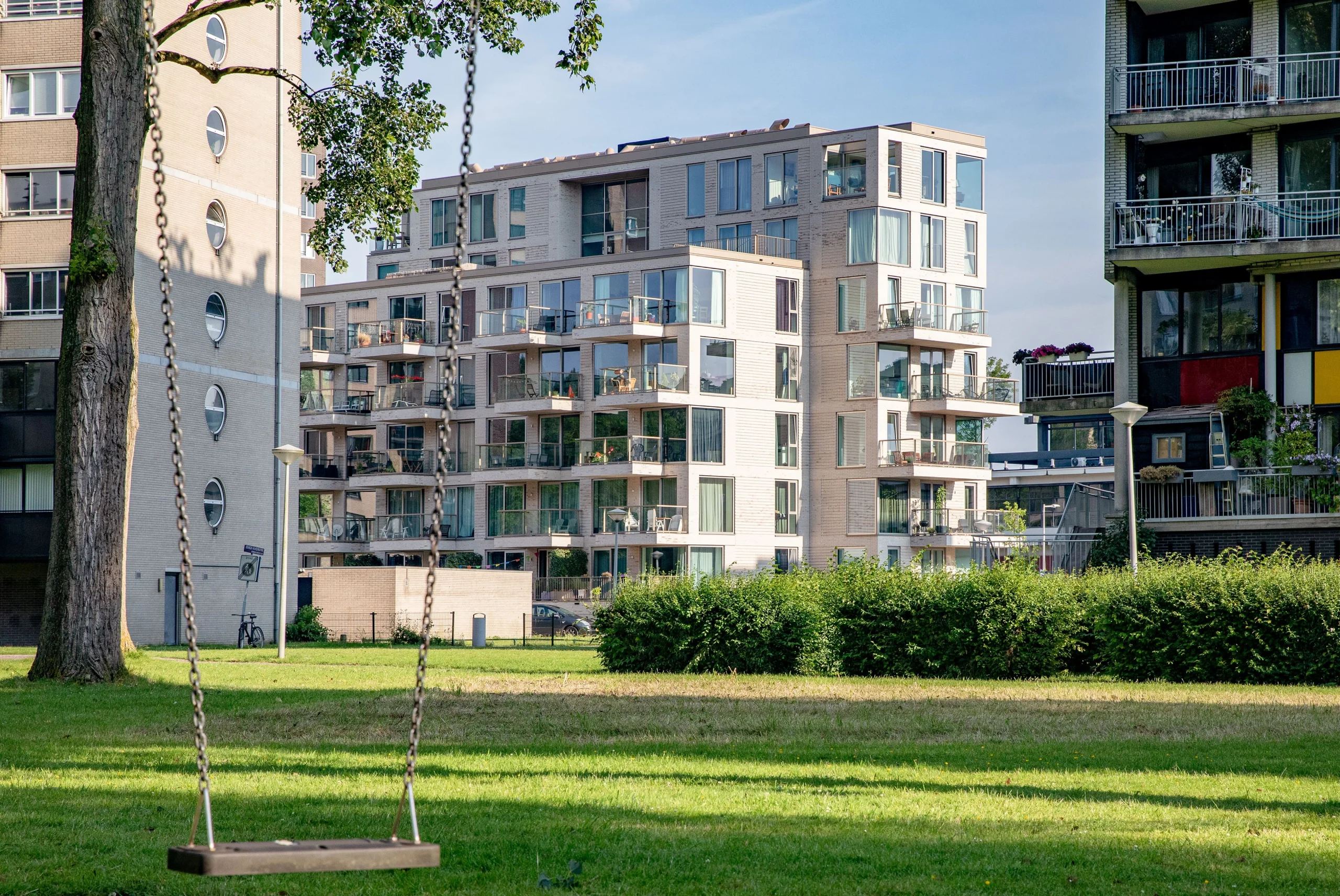

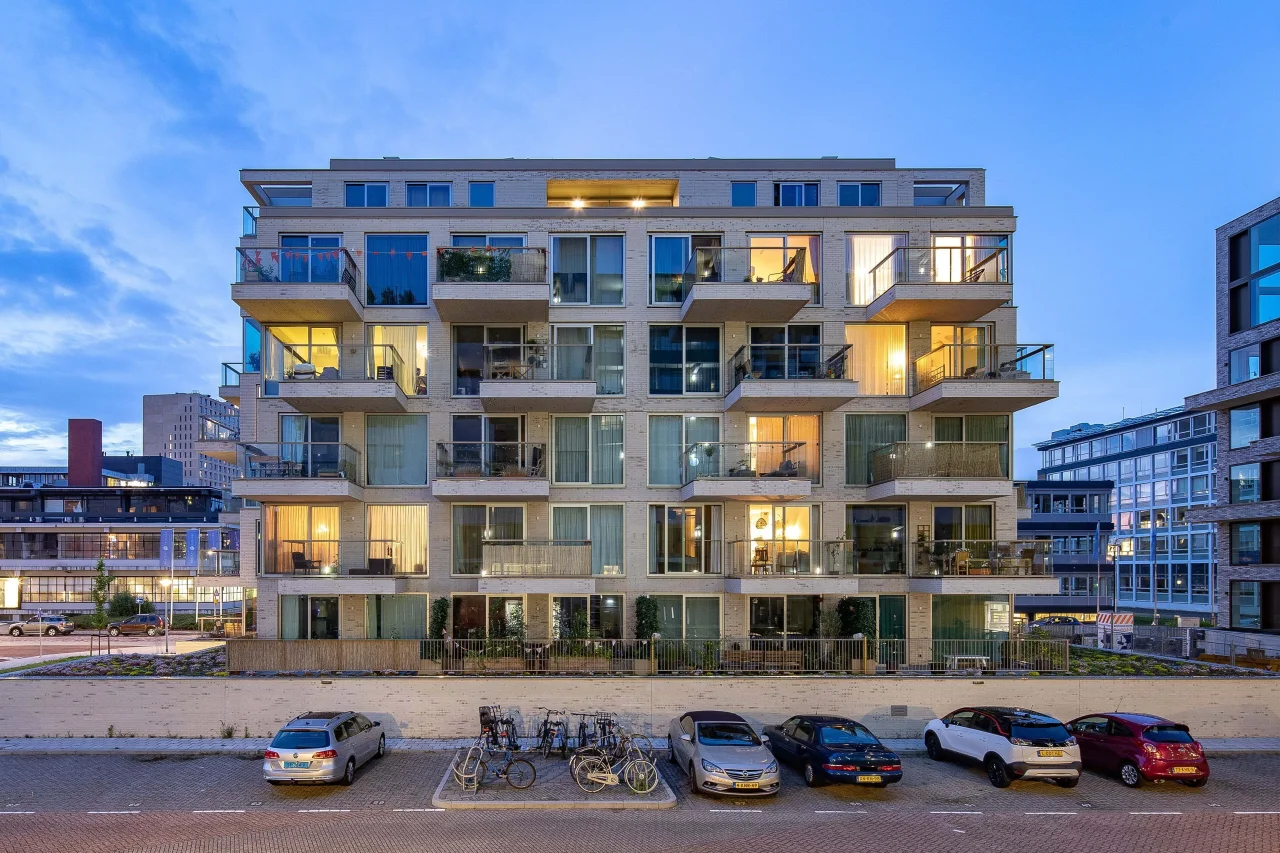

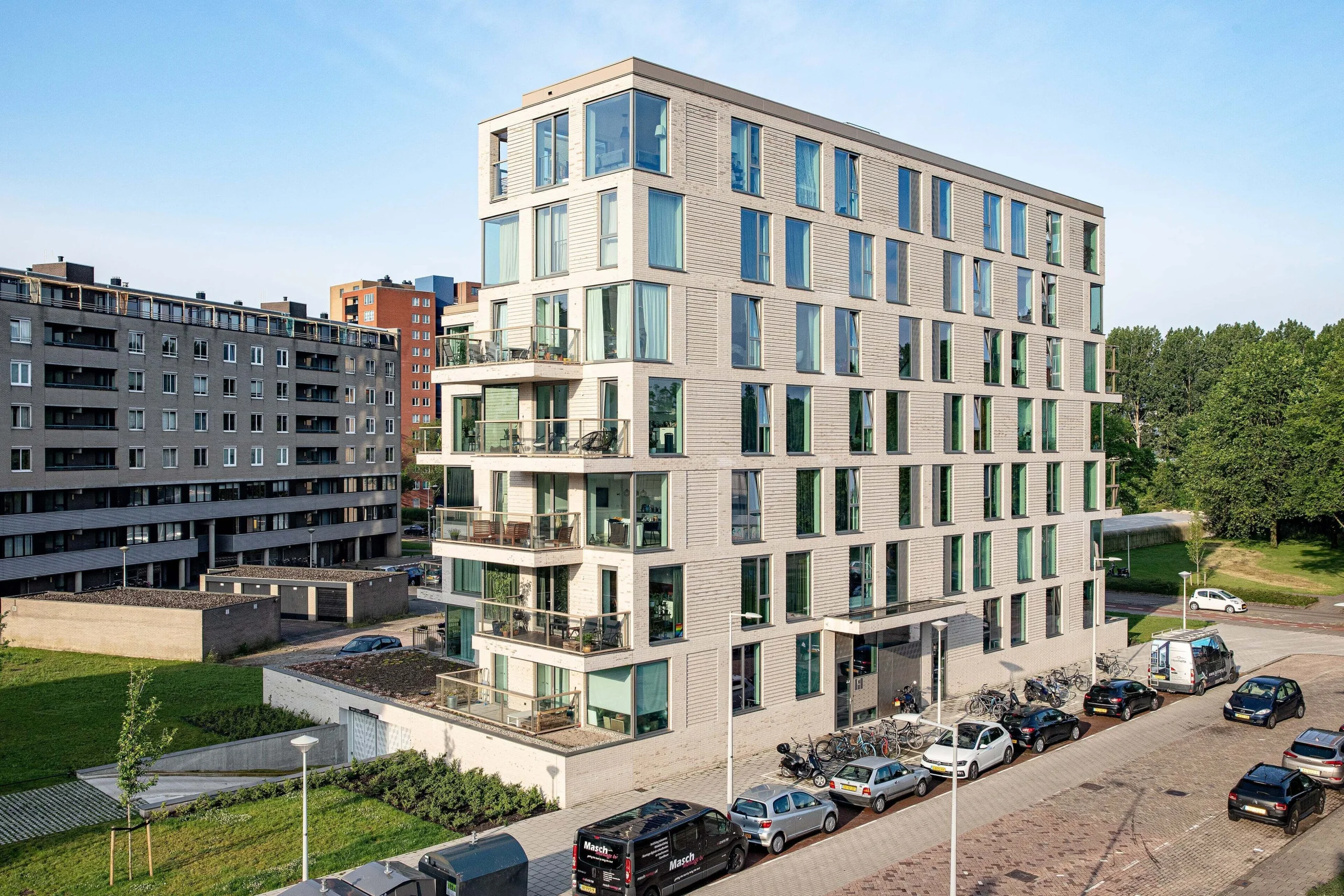

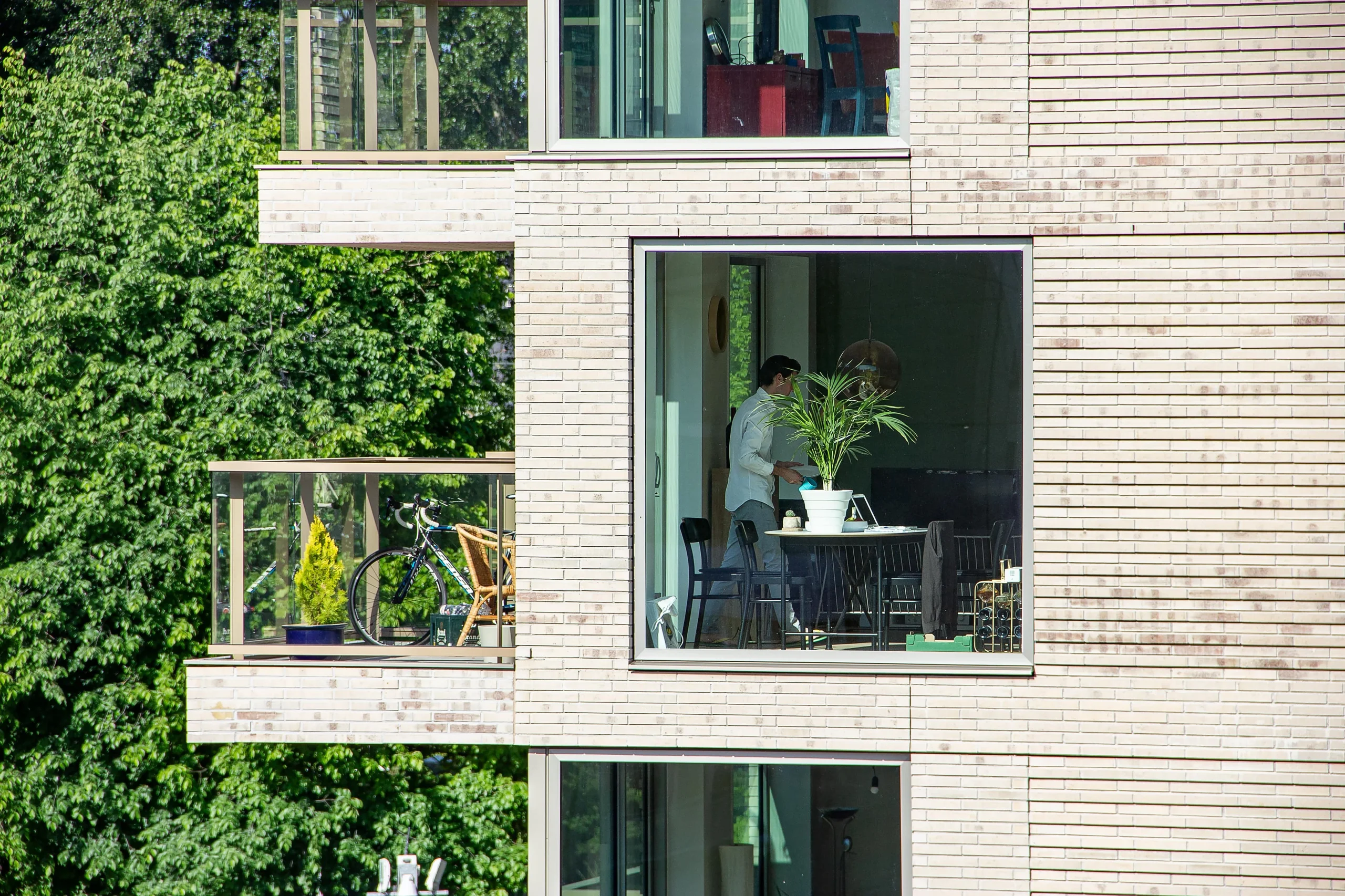

With an interplay of large windows and spacious balconies in a rigid brick façade, we create transparent buildings. Buildings that radiate tranquillity and openness. On the north side, they are tight to the street. The layering in the brickwork, following the almost floor-to-ceiling windows, forms a subtle checkerboard pattern. Towards the green area, spacious balconies on the south side are draped around the building.



High-quality materials

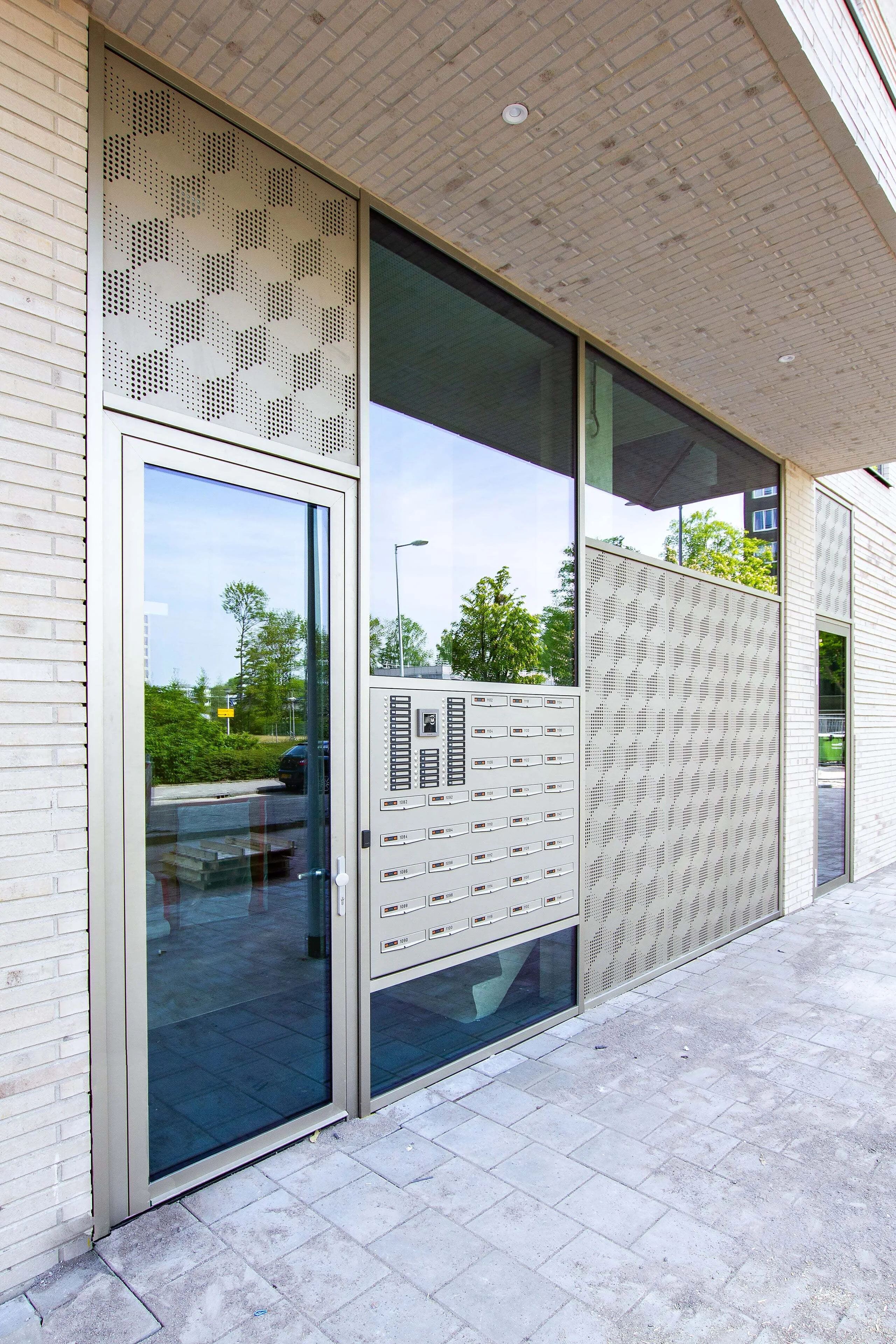

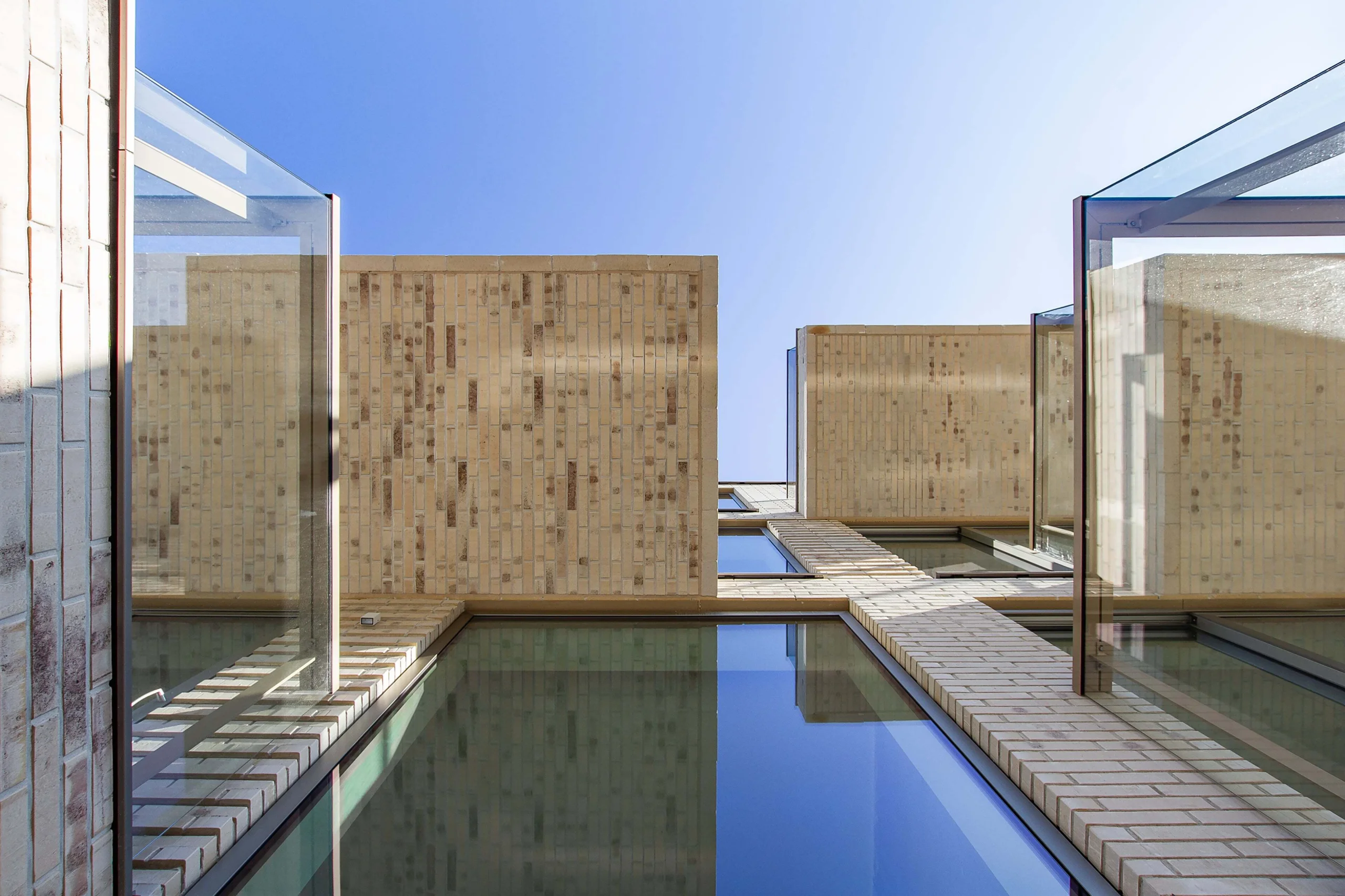

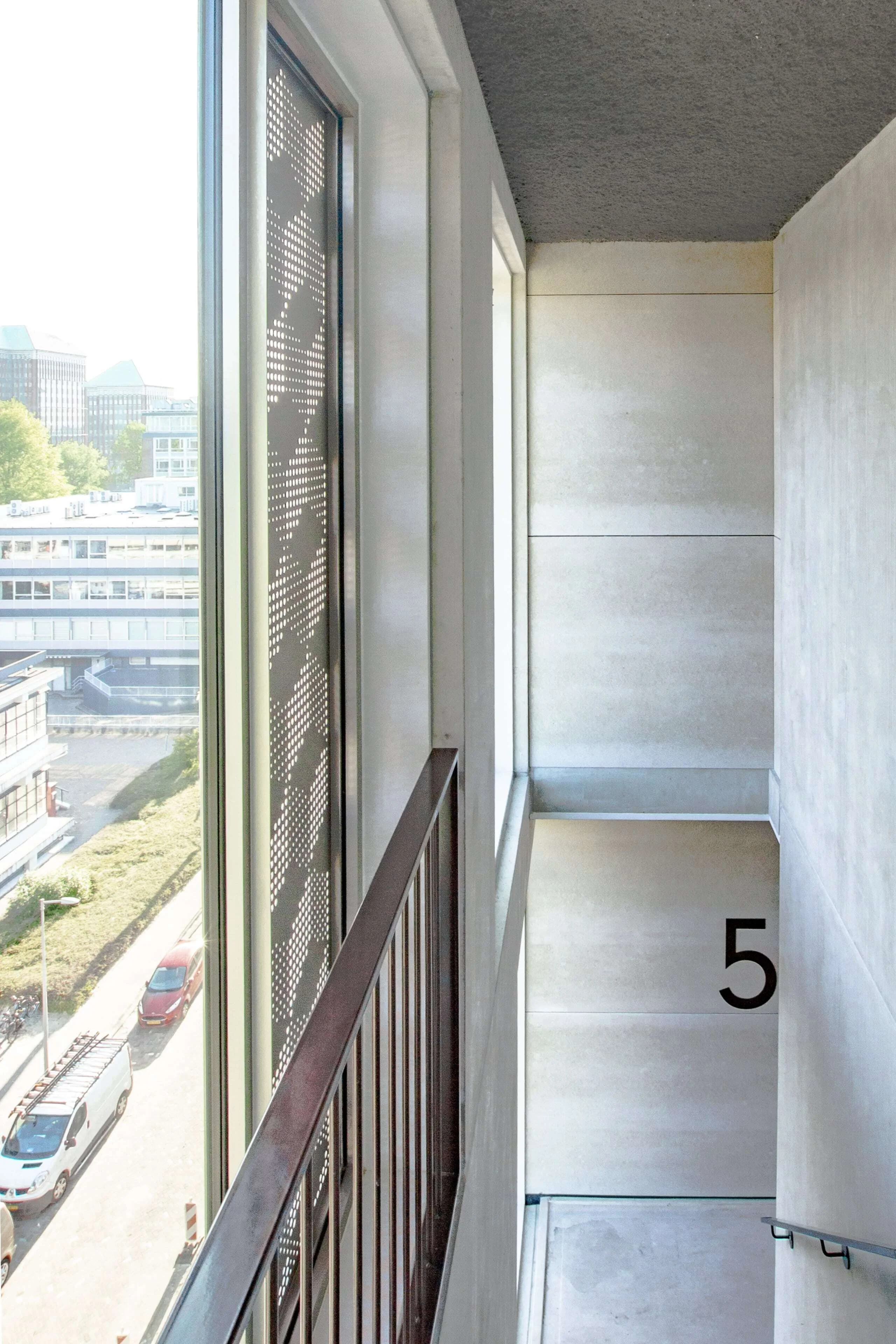

High-quality materials with refined detailing were used throughout the design. For example, the balconies are covered with stone strips on the underside. The four-metre-high entrances on the street side are marked by a striking canopy. The design of the stairwell with high-quality materials makes the shared interior spaces look tough and chic.



Sustainable

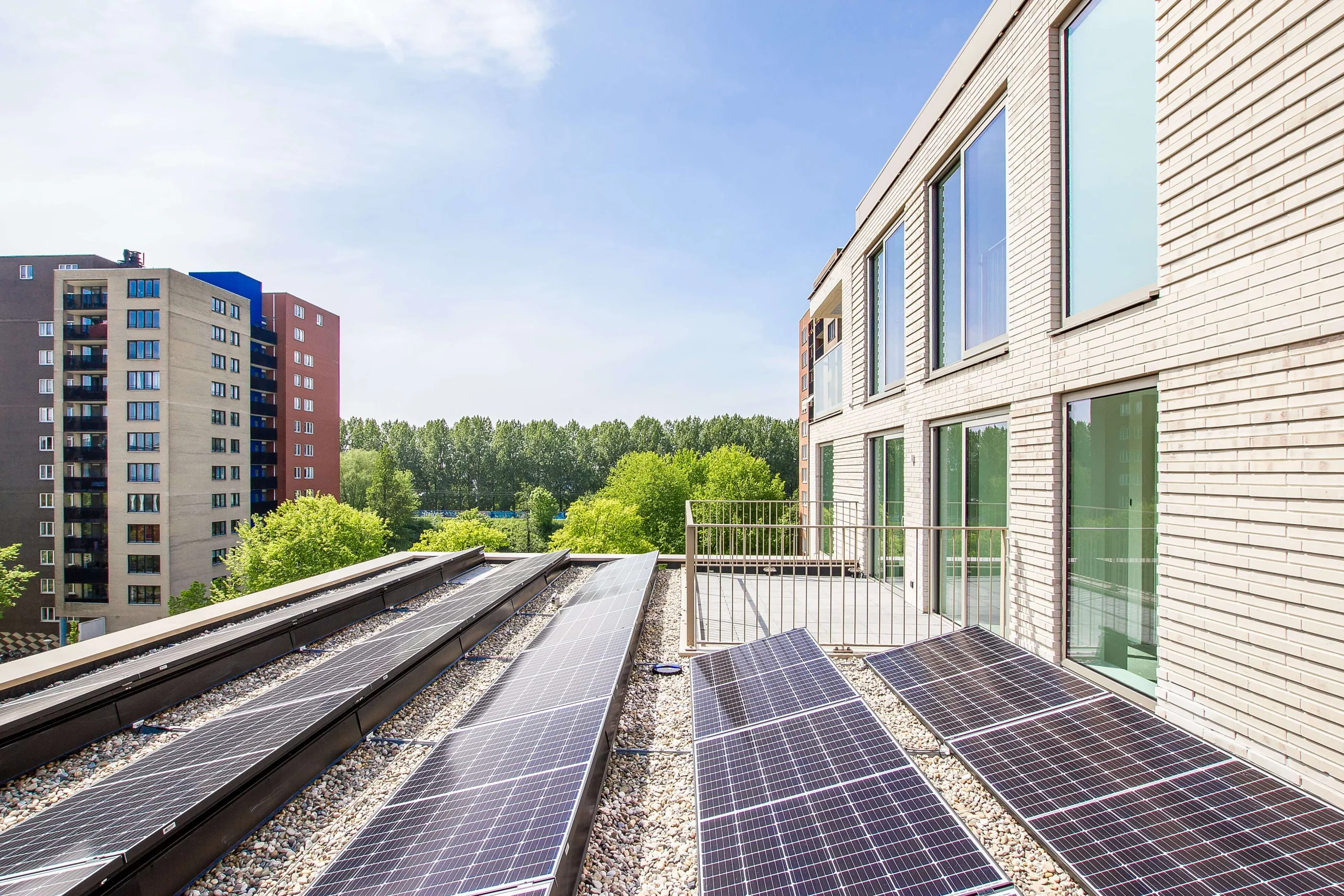

Solar panels, a green sedum roof with extra 'rainproof' water retention and a green entrance to the car park together contribute to reducing energy costs for residents and making the roofs climate-adaptive.

Info

Client
Maarsen Groep
Program
6,900 m² with 68 apartments and 32 built parking places
Design
Adriaan Mout, Jurriaan van Stigt, Marianne Loof
Projectteam
Surya Steijlen, David Meijer, Irina Margarit, Martijn Tjassens Keiser, Sunny Jessurun
Location
Amsterdam
Year
2017 – 2020
Contractor
Van Wijnen
Photography
LEVS architecten, Tom Elst
